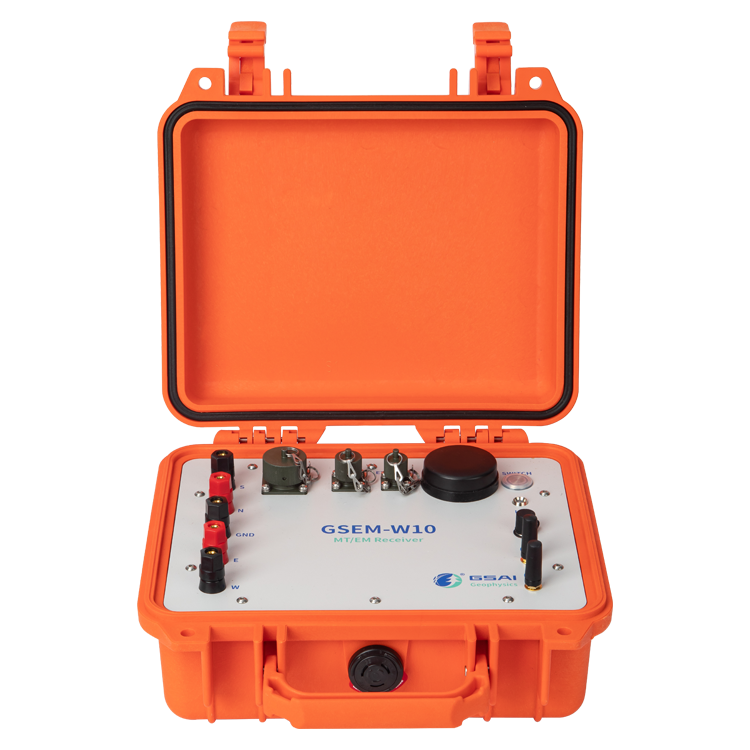

Electromagnetic system-LMT(GSEM-W10)
Ultra-Deep Earth Imaging for Crust and Mantle Investigation
LMT system by GSAI Junshan provides high-precision electromagnetic data acquisition with strong anti-interference ability. It is easy to operate, highly reliable, and widely used in mineral, engineering, and environmental surveys.
1. Number of channels: 5(Ex、Ey、Hx、Hy、Hz);
2. Bandwidth: 1Hz~10kHz;
3. Gain: 0.1、1、3、9 optional;
4. GPS synchronization accuracy: 30 ns;
5. ADC bits: 32 bits;
6. Total dynamic range: 160 dB;
7. Single power consumption: less than 2.5 W;
8. Sampling frequency: 150Hz/2400Hz/24000Hz;
9. Acquisition mode: 3 frequancy bands parallel acquisition, support real-time digital filtering;

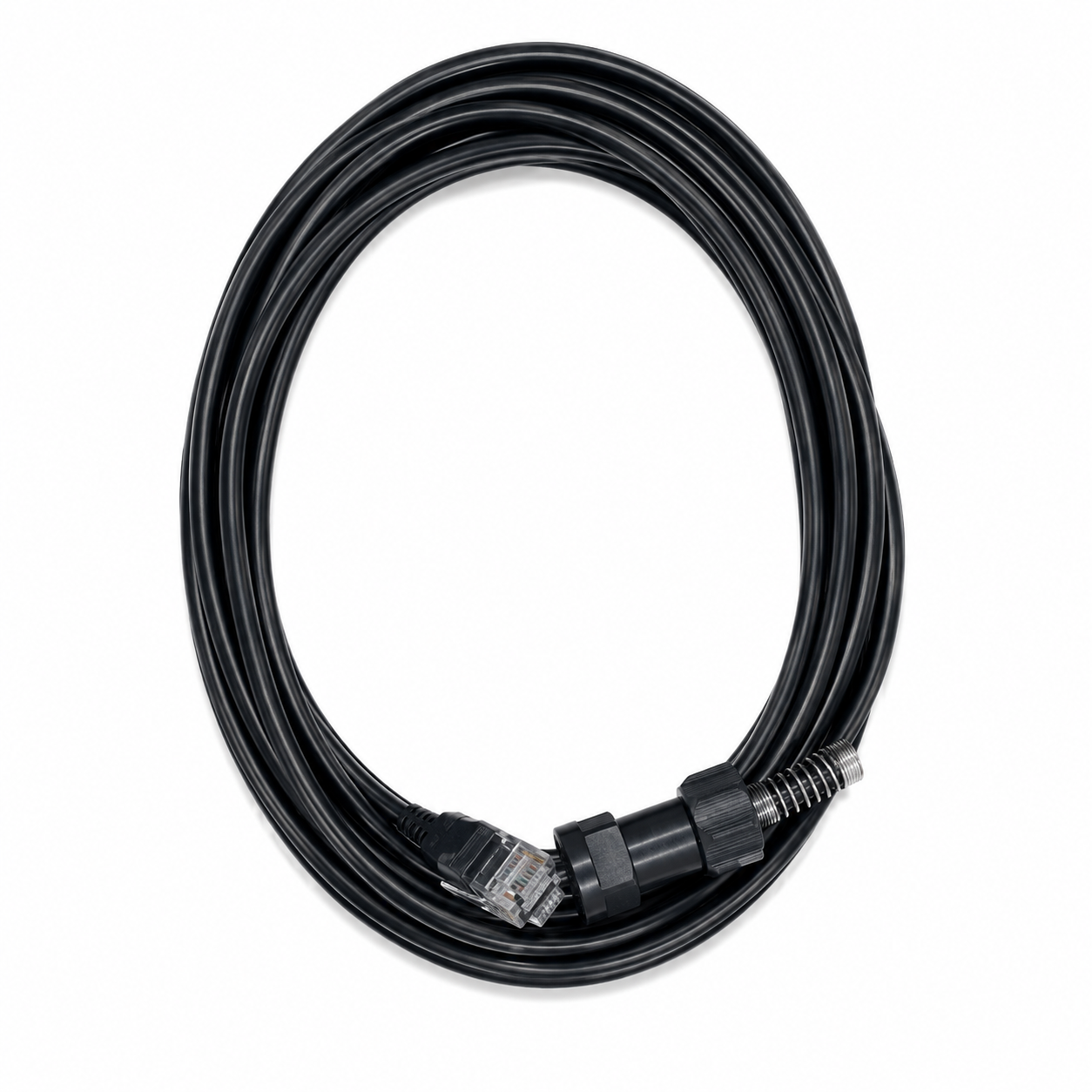

10. Support Ethernet, WiFi measurement and control;
11. Support powerbank power supply.
-
Oil & Gas
-
Karst & Leakage Detection
-
Groundwater & Geothermal
-
Mineral Exploration
