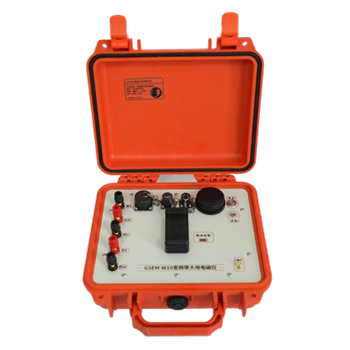

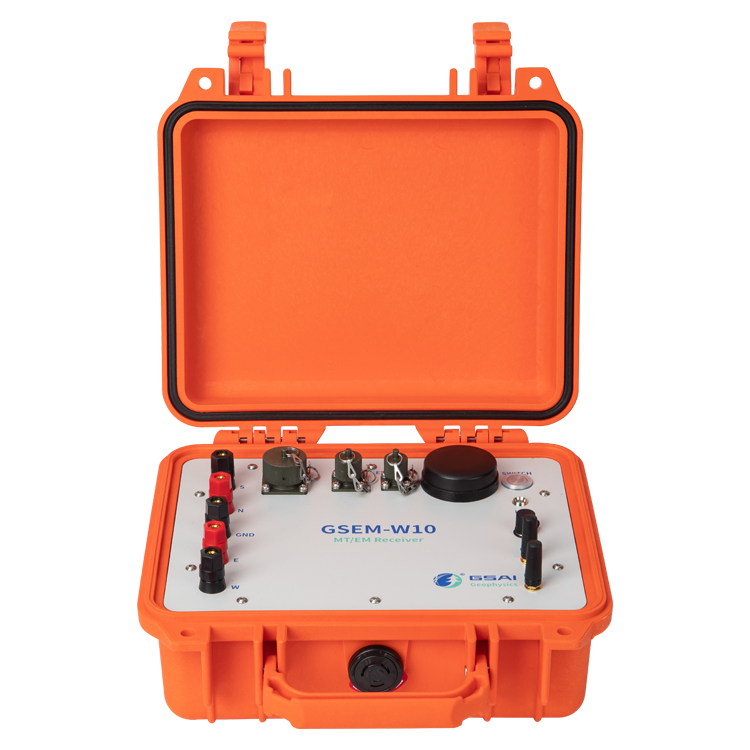

Electromagnetic system-MT (GSEM-W10)
Deep Geophysical Exploration with Reliable Magnetotelluric Technology
MT system uses advanced electronics and signal processing, with high sensitivity, low noise, broadband, low power and remote control. GSEM-PROS enables adaptive filtering, multi-window analysis, deep learning noise suppression and accurate impedance estimation for MT data processing.
1. Number of channels: 5 (Ex、Ey、Hx、Hy、Hz);
2. Bandwidth: 0.001 Hz~1kHz;
3. Gain: MT mode 0.1、1、16、64;
4. GPS synchronization accuracy: 30 ns;
5. ADC bits: 32 bits;
6. Total dynamic range: 160 dB;
7. Single power consumption: less than 2.5 W;
8. Sampling frequency: 15Hz/150Hz/2400Hz;
9. Acquisition mode: 3 frequancy bands parallel acquisition, support real-time digital filtering;
10. Support Ethernet, WiFi measurement and control;
11. Support powerbank power supply.
-
Mineral Exploration
-
Groundwater & Geothermal Exploration
-
Near-surface MT Measurement
-
Oil & Gas Exploration
