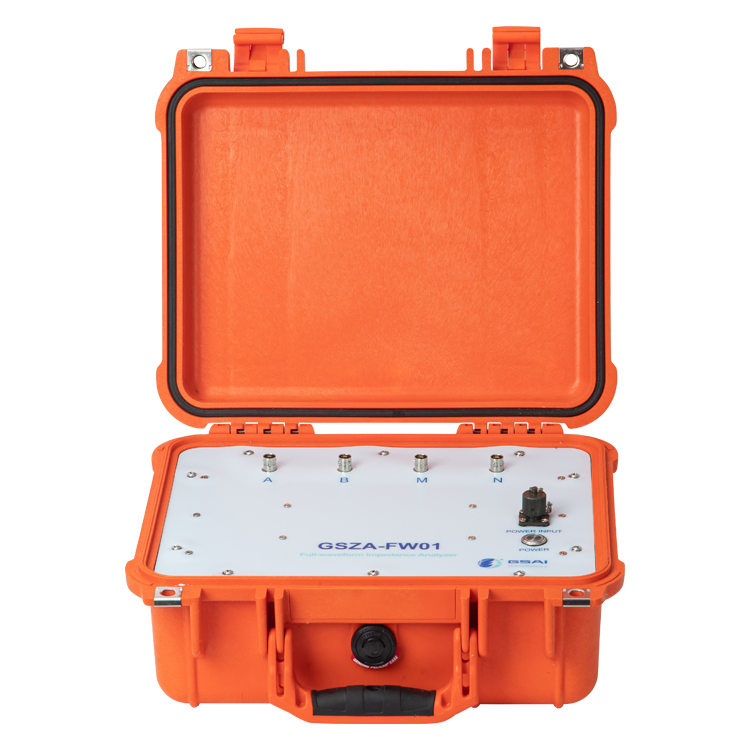

Full Waveform Impedance Analyzer
(GSZA-FW01)

Accurate Electrical Property Analysis for Rock and Ore Specimens

GSZA-FW01 accurately measures rock, ore, and soil impedance from 0.001–1000 Hz using precision measurement, IoT, big data, and smartphone APP control. It provides reliable spectral IP analysis for mineral exploration, oil and gas detection, groundwater investigation, and electromagnetic research.

Obtain product information document

1. Constant voltage measurement mode: 1 mV, 10 mV, 100 mV, 1V, 10 V supply voltage controllable.

2. Constant current measurement mode: 1 μA,10 μA,100 μA,1 mA, 10 mA power supply current controllable.

3. Input impedance: 10¹² Ω.

4. Sampling resistance: 1000 Ω.

5. Measurement frequency range: 0.001 HZ-1000 Hz automatic sweep frequency, sweep frequency density controllable.

6. Impedance phase accuracy: 0.1 mrad.

7. Impedance measurement range: -π~π.

8. Impedance accuracy: 1%.

9. Impedance measurement range: 10^-3~10⁹Ω.

10. Record data: power supply current waveform, measured voltage waveform, impedance. (phase+amplitute), complex resistivity, sample/outcrop photo, measurement parameters, sample parameters, rock ore outcrop coordinates.

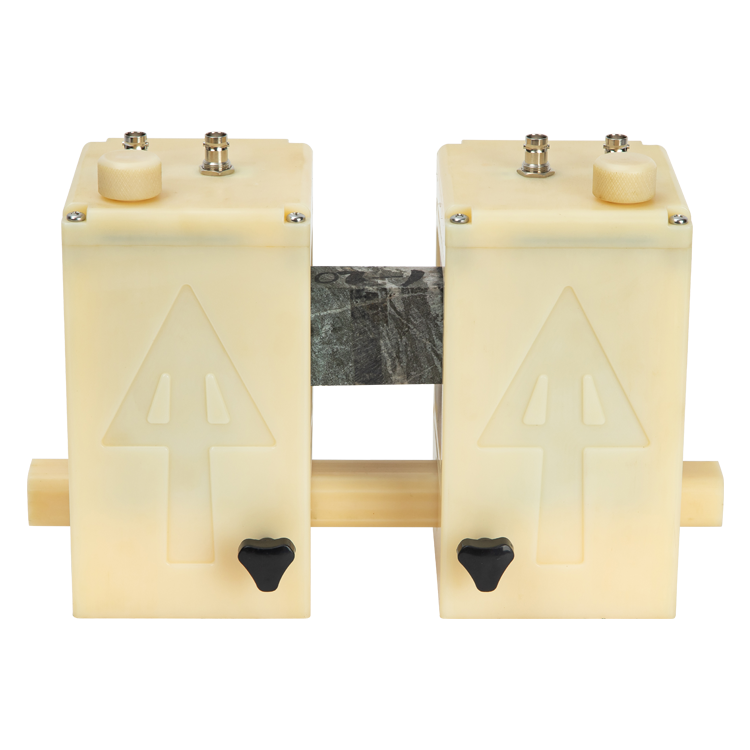

11. Maximum sample size: 85 mm x 85 mm x 500 mm.

12. Working temperature:-20~60°C.

13. Connection mode: Bluetooth、WiFi.
